Weco Door Detector 957Q-24VDC (Residential/Slim Model)

REQUEST QUOTE

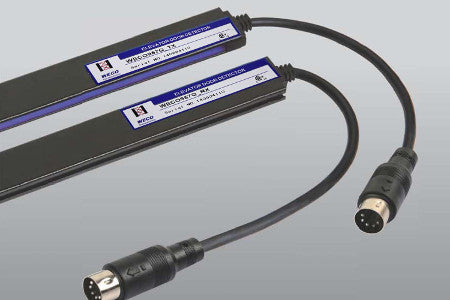

957Q “Residential” Slimline door detector with 24VDC power supply.

Included in the package:

  • 2x true travelling cables
  • 1x 24VDC transformer and control box
  • Installation accessories
  • Installation manual

CSA B44-2019, Safety Code

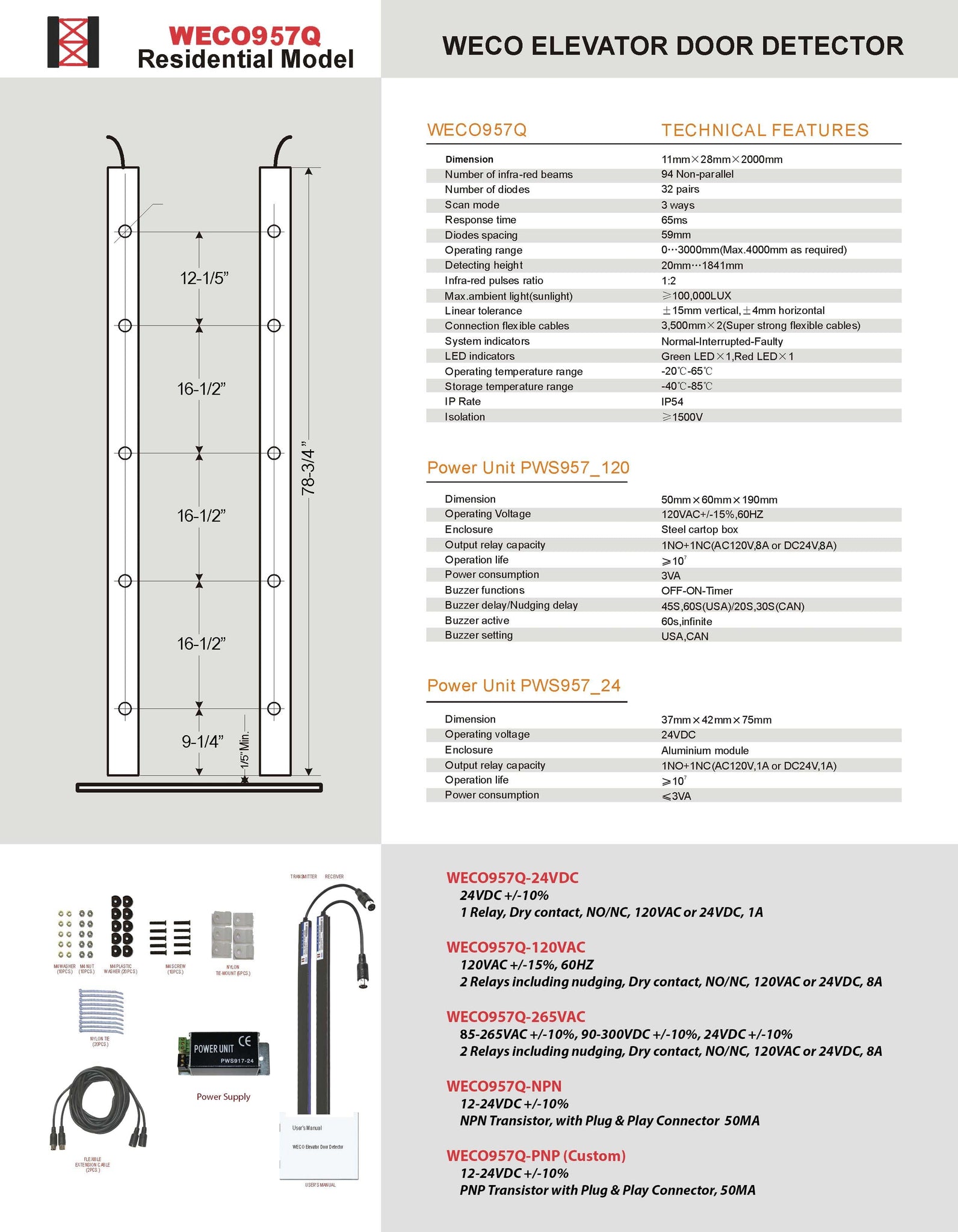

    WECO 957Q Technical Features

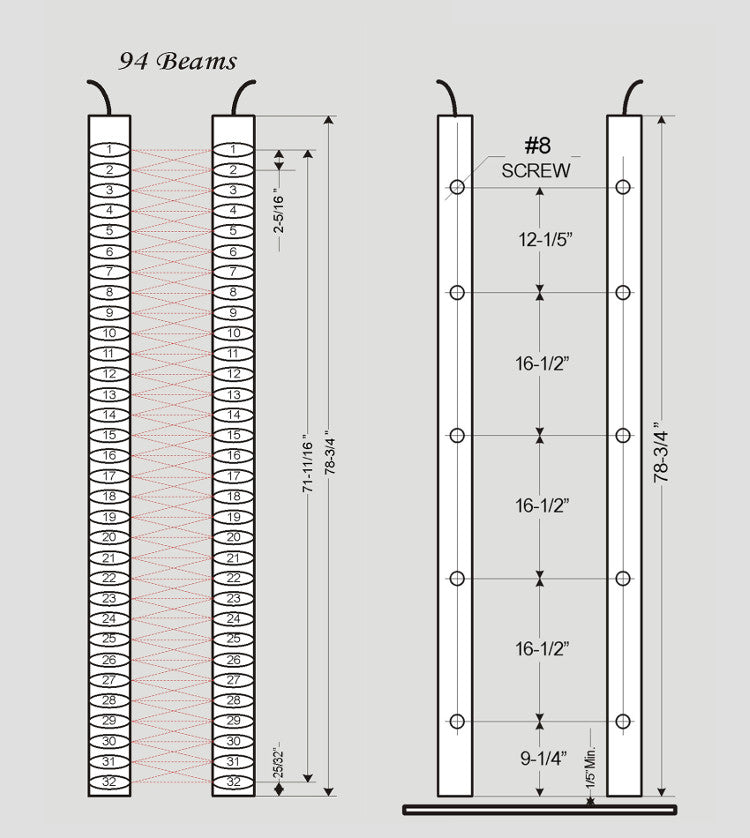

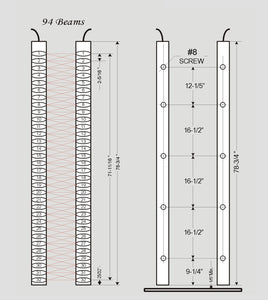

    Dimensions 11mm x 28mm x 2000mm
    Number of infra-red beams 94 Non-parallel
    Number of diodes 32 pairs
    Scan mode 3 way
    Response time 65ms
    Diode Spacing 59mm
    Operating range 0 – 3000mm (Max. 4000mm as required)
    Detecting height 20mm – 1841mm
    Infra-red pulses ratio 1:2
    Max. ambient light (sunlight) ≥100,000Lux
    Linear tolerance ±15mm vertical, ±4mm horizontal
    Flexible connection cables 2x 3,500mm long
    System indicators Normal-Interrupted-Faulty
    LED indicators Green LEDx1, Red LEDx1
    Operating temperature range -20℃ – 65℃
    Storage temperature range -40℃ – 85℃
    IP Rating IP54
    Isolation ≥1500V

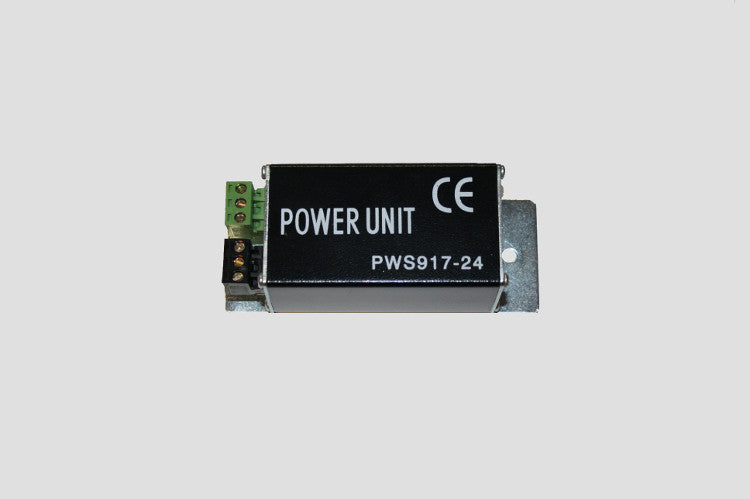

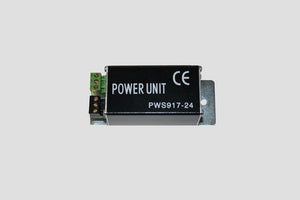

    Power Unit PWS917 24VDC
    Dimension 37mm x 42mm x 75mm
    Operating Voltage 24VDC

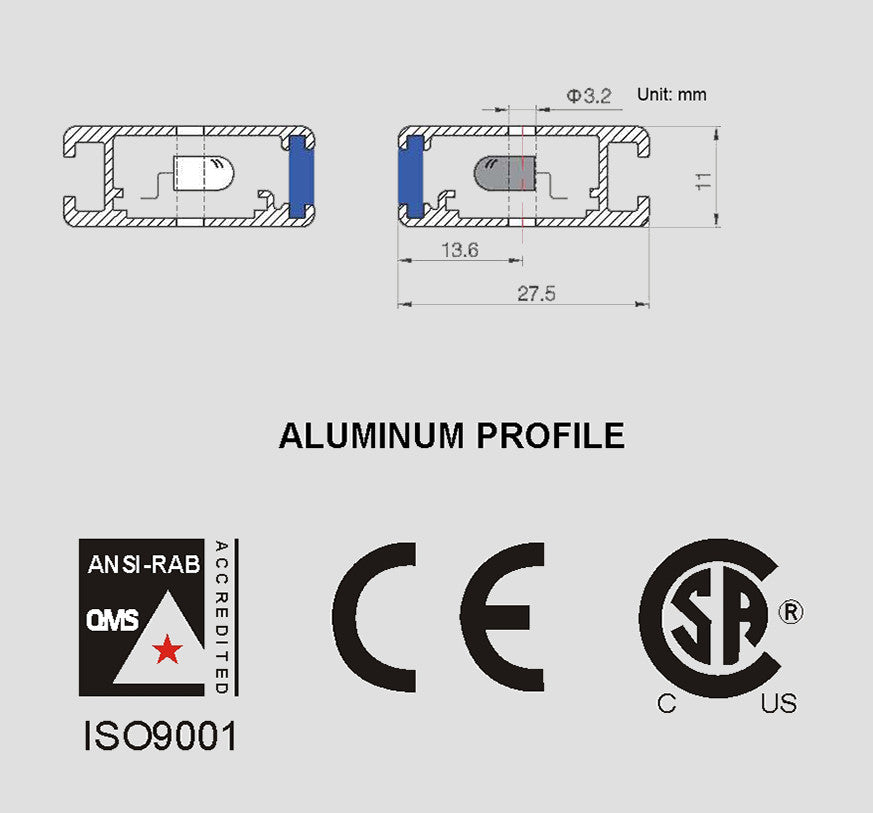

    Enclosure Aluminium module
    Output relay capacity 1NO + 1NC (AC120V, 8A or DC24V, 8A)
    Operating life ≥10^7
    Power consumption 3VA
